Car Battery Charger - 12/24V Automatic with Repair Function

✔ When your car battery fails, there is no time for compromises.

• Our automatic battery charger is a reliable tool that quickly restores your vehicle's power, whether it's a car, van, or truck.
• Equipped with a repair function, the charger not only charges but also regenerates batteries, extending their lifespan.

✔ Don't be caught off guard – a charger that takes care of your battery all year round.

✔ Advantages:

• Quick battery regeneration: Our device automatically adjusts the charging process, which not only ensures a full charge but also repairs damaged cells.
• Versatility: Supports 12V and 24V batteries ranging from 6Ah to 150Ah (12V) and 6Ah to 100Ah (24V), making it ideal for various types of vehicles.
• Safety and convenience: Protections against short-circuiting, overheating, reverse polarity, and an easy-to-use interface make charging the battery stress-free and safe.

• Advanced 3-stage charging system: Soft start, constant current (CC) charging, constant voltage (CV) charging – each stage is tailored for optimal battery performance.
• Overcharge protection: An intelligent microprocessor controls the charging process, ensuring the battery is charged perfectly without risk of damage.
• Ease of use: A clear LCD display shows all necessary information, such as voltage, current, temperature, allowing full control over the charging process.
• Compact and efficient: The charger features high efficiency (>85%) while being compact enough to fit in any trunk.

✔ Everything you need to keep your battery like new

✔ Universal charger that supports batteries used in:

• motorcycles
• boats
• cars
• trucks
• electric bikes
• forklifts
• lawn mowers
• alarm systems
• toys
• and many other devices

1. For large batteries (Fat Charge)

• 12 V: Max charging current 10 A
• 24 V: Max charging current 5 A

2. For AGM, calcium batteries

3. For small batteries (slow charging)

• Max charging current 2A

4. Repair Mode (18 hours)

• Advanced battery recovery mode for repairing and storing old, inactive, damaged, layered, or sulfated batteries

5. Smart Charging

• Automatically adjusts the charging current to the battery's state, ensuring optimal and safe charging.

6. Intelligent Detection

• Detects the battery type and voltage, automatically adjusting the charging parameters.

7. Winter/Summer Mode

• Allows adjustment of the charging process according to the ambient temperature, ensuring effective charging in different weather conditions.

8. Multiple Protection

• Protects the battery from overcharging, short-circuiting, reverse polarity, and overheating, ensuring safe use.

9. Charging mode selection button

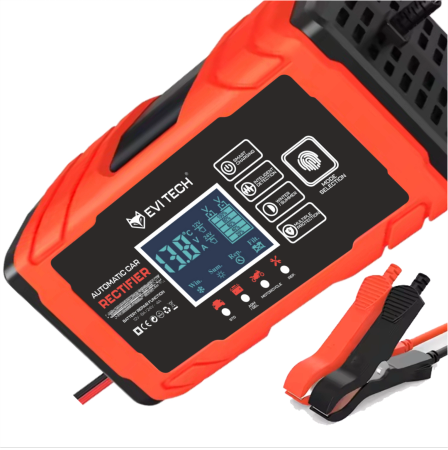

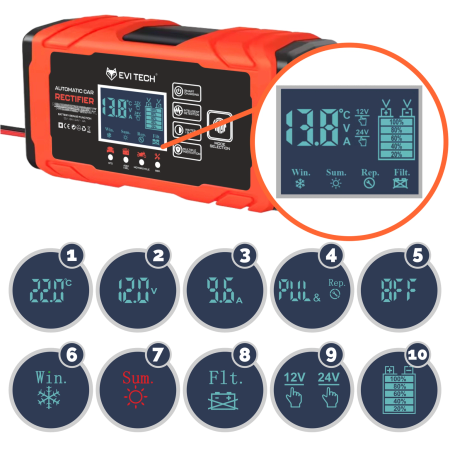

✔ LCD Display

1. Internal temperature of the charger

2. Charging voltage

3. Charging current

4. Repair mode

5. Total charging

6. Winter mode

7. Summer mode

8. Warnings:

• Incorrect polarity. Change the position of the clamps
• Damaged battery, have it checked by a mechanic and replace if necessary
• Poor connection, check the connection between the charger and the battery

9. 12V or 24V Battery

10. Battery capacity

✔ Ease of use you need

✔ Ideal for

• Charging AGM, GEL, SLA, Flooded (WET), VRLA, and Calcium deep cycle batteries in vehicles and devices such as cars, motorcycles, lawn mowers, boats, campers, SUVs, ATVs, and others, with 12/24V voltage.

✔ Winter Mode

Automatically activates winter mode below -10°C, ensuring effective charging in low temperatures.

✔ Summer Mode

Switches to summer mode above +28°C to prevent overcharging the battery on hot days.

✔ Technical Specifications

• Model: AI Rectifier
• Type: Smart - automatic charger
• AC Input: 110-220V 50/60Hz
• Output Voltage: 12V/24V Auto
• Output Current: 12V 10A / 24V 5A
• Output Power: Max. 150W
• No-load Power: 3.2W
• Dimensions: 170x98x58mm
• Net Weight: 560g
• Cooling: Fan
• Operating Temperature Range: -20 to +45°C
• Storage Temperature Range: -30 to +70°C
• Operating Humidity: Max 90% RH
• Certifications: CE, ROHS
• Safety Features: Short-circuit protection, reverse polarity protection, overheating protection, sparking protection.
